BeamAce

The digital layout measuring and marking tool for structural steel beams and profiles

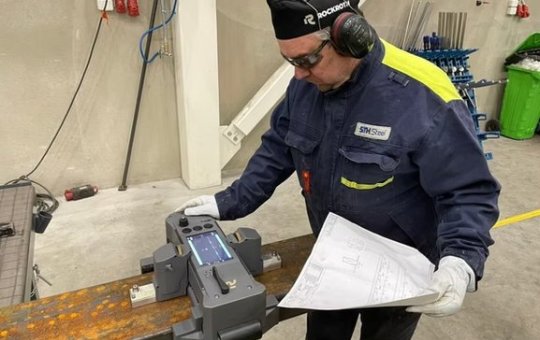

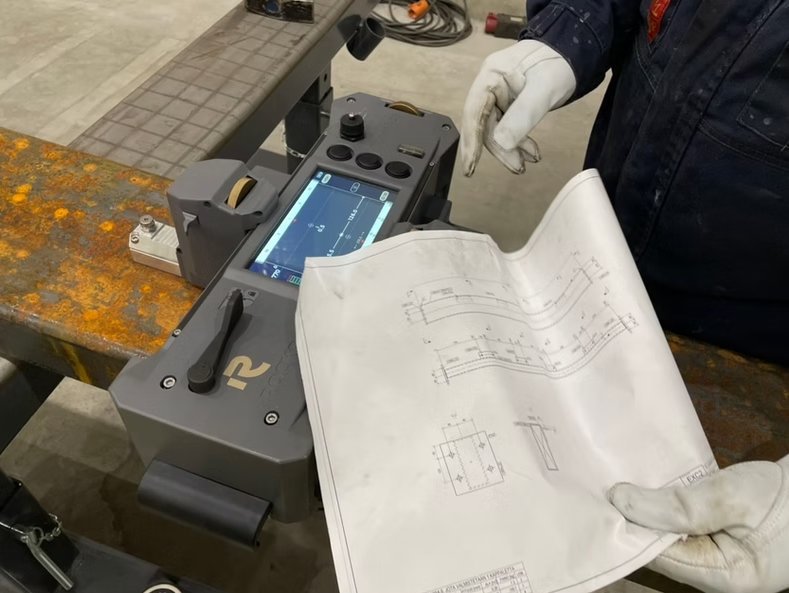

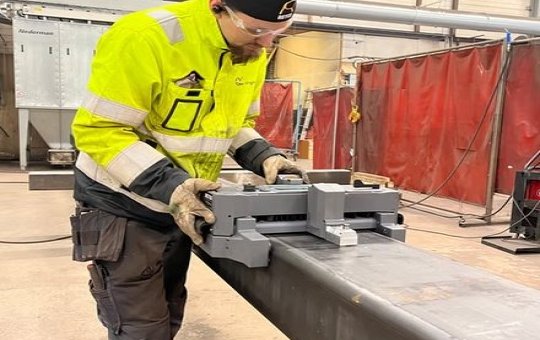

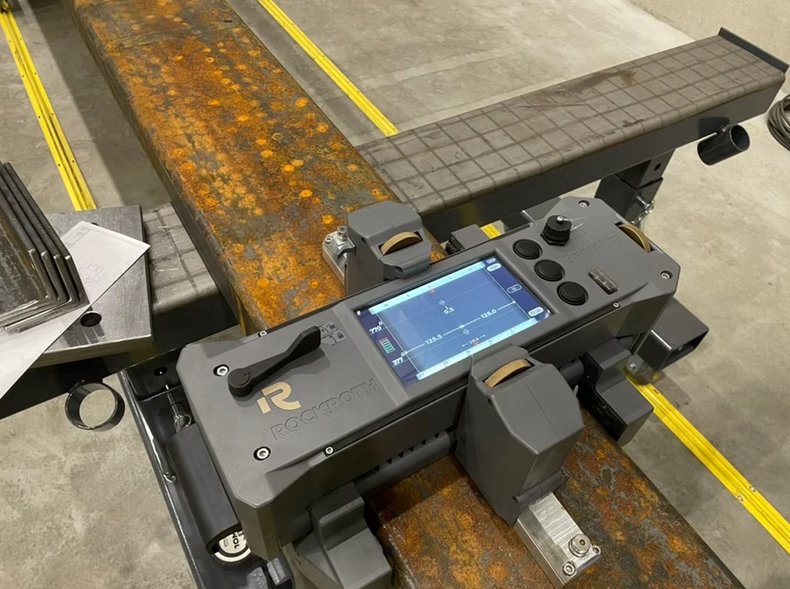

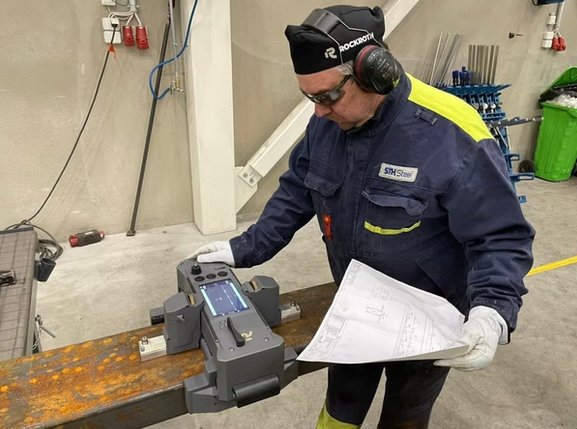

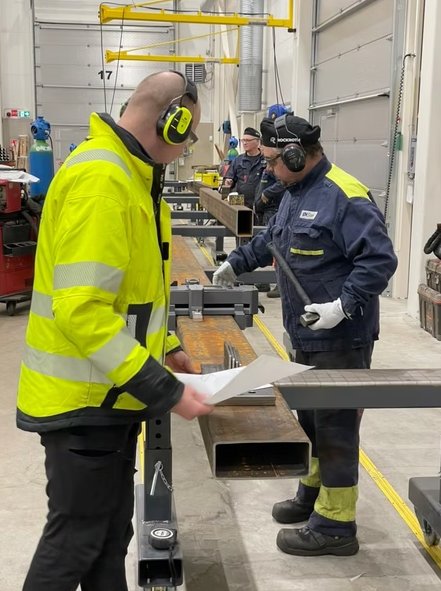

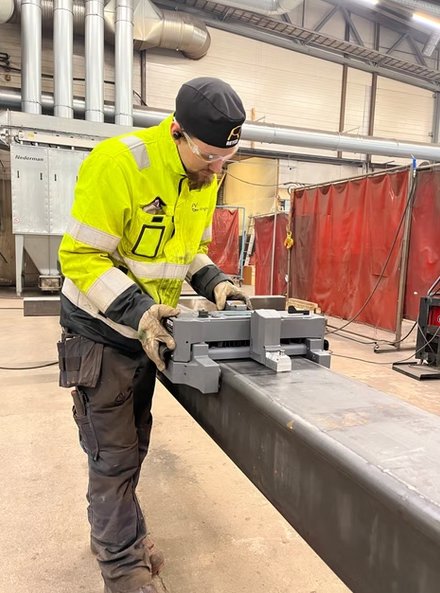

BeamAce is a digital layout measuring and marking tool for structural steel beams and profiles, which allows you to easily mark the locations of processing features such as drilling and notching—shown in part drawings, as well as the locations of components to be attached to the beam—shown in assembly drawings. BeamAce speeds up and simplifies the layout marking process and reduces costly measurement errors, which enables annual savings of up to tens of thousands of euros and a significant increase in production capacity.

BeamAce is easy and simple to use, so its implementation does not require long training—in fact, it can be done effortlessly in less than an hour. In the video below you can learn about the working principle of BeamAce and its various applications. To get a complete understanding of BeamAce's features and how to use it, watch the full-length BeamAce demo video, which you can easily request from us via the contact form.

This device, which significantly improves production efficiency, is available even more affordably than many professional-grade MIG/MAG welding machines.

Request your own quote easily using our contact form

Contact Us →



Revolutionizes layout measuring and marking for structural steel beams.

New Standard for Steel Structure Manufacturing

Fewer costly measurement errors

Significant cost savings

User-friendly

Product Information

Questions or quote requests →

BeamAce is a patented Finnish innovation.

The BeamAce tool set includes:

  • BeamAce Unit
  • Transport/storage tool case
  • Desktop dock
  • Charger
  • TS300 Steel structure square ruler
  • Calibration certificate
  • The set of user-replaceable wear parts (Brushes, wipers, screen protectors)

Warranty:

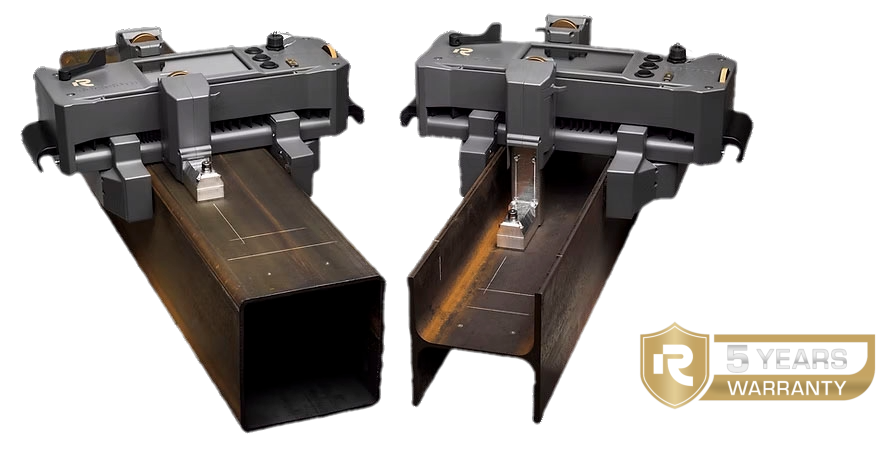

5-year Rockroth warranty

Compatibility:

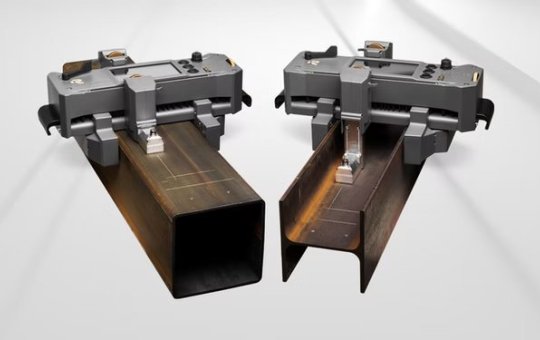

  • H-beams
  • I-beams
  • U-beams
  • Flat bars
  • Angle bars
  • RHS tubes
  • Compatible width: 80 mm – 300 mm
  • Compatible length: 0.5 m – Unlimited

To determine the suitability of other profiles, please contact our product support.

Measurement accuracy:

  • In the width direction +-1mm
  • Lengthwise +-1mm up to 12M

The measuring accuracy of the length direction can be slightly affected if there is a lot of loose dirt or rust on the surface of the beam.

Measurement resolution:

0.5mm or 1.0mm resolution can be selected in the settings.

Battery life:

Up to 30 hours depending on screen brightness settings.

Weight and Dimensions:

  • 12 kg (approx.)
  • Width: 514 mm, Length: 421 mm, Height: 345 mm.

To get a complete understanding of the possibilities of BeamAce and its features and how to use them, request a complete 15 min BeamAce DEMO video for free

You can request a Demo video quickly and easily using our contact form.

Request a full-length Demo →
